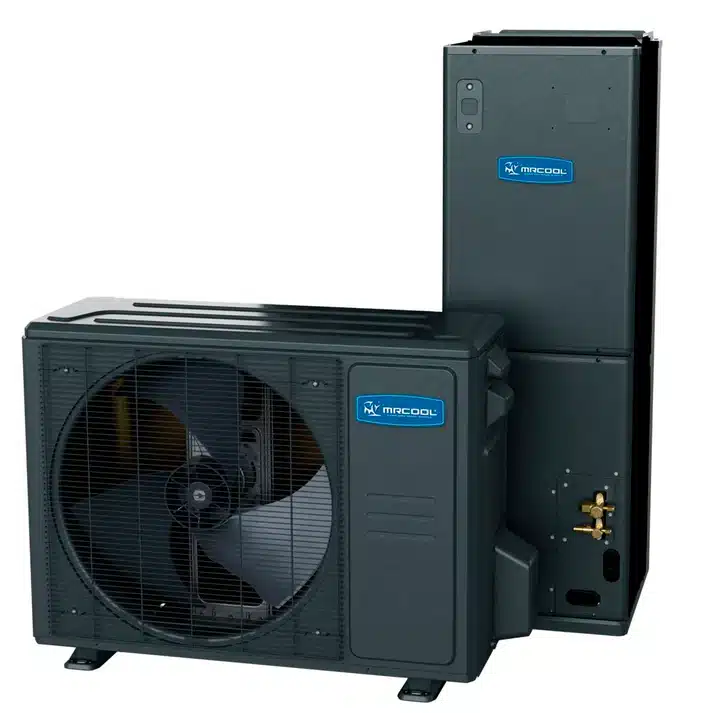

Mr Cool 30,000 BTU 2.5 Ton Universal Split Series Complete Heat Pump System with Air Handler
22 people are viewing this product right now
$6,900.00
MRCOOL Universal® 30,000 BTU (2.5 Ton) Inverter Heat Pump System
The MRCOOL Universal® 30,000 BTU (2.5 Ton) system delivers reliable, energy-efficient heating and cooling throughout the year. Powered by advanced DC inverter technology and eco-friendly R-454B refrigerant, it adjusts output as needed to maintain consistent indoor comfort while helping reduce energy costs. With a 17.2 SEER2 efficiency rating, this system offers a strong balance of performance, efficiency, and flexibility.
The slim, multi-position air handler is designed for versatile installation and fits easily in attics, closets, crawlspaces, and other space-limited areas. Quiet operation, corrosion-resistant components, and compatibility with MRCOOL® NO-VAC® Quick Connect® line sets make installation faster while supporting long-term reliability.
Key Features & Benefits
-
High Energy Efficiency – 17.2 SEER2 rating for dependable year-round comfort
-
DC Inverter Technology – Variable-speed operation for consistent temperatures and reduced noise
-
Multi-Position Installation – Supports upflow, downflow, and horizontal configurations
-
Compact Design – Ideal for tight mechanical spaces
-
Quick Connect Compatibility – Works with MRCOOL® NO-VAC® Quick Connect® line sets
-
Optional Heat Kits Available – Enhanced cold-weather performance and backup heating
-
Durable Aluminum Coil – Corrosion-resistant M-shaped coil for long-term reliability
-
Quiet Operation – Engineered for low sound levels
-
Warranty Coverage – 10-year parts and 2-year limited labor warranty
| Product Brochure | |
|---|---|
| Installation Manual | |
| Service Manual | |
| Warranty Information |
| DIMENSIONS | |
|---|---|
| Condenser Dimensions | 37.24" W x 16.14" D x 31.89" H |
| Air Handler Dimensions | 17.52" W x 21.50" D x 53.98" H |
| Condenser Weight | 166.67 lbs |
| Air Handler Weight | 149.25 lbs |
| CAPACITY & PERFORMANCE | |
| Zone Capacity | 1 |
| Cooling Capacity | 30,000 BTU |
| Outdoor Operating Temperature (Cooling) | -30°C to 50°C |
| SEER2 | 17.2 |
| EER2 | 12 |
| Heating Capacity | 33,000 BTU |
| Outdoor Operating Temperature (Heating) | -30°C to 24°C |
| HSPF2-4 | 10.8 |
| HSPF2-5 | 8.8 |
| Coverage Area | Up to 1,250 sq. ft. |
| Outdoor Noise Level | 62 dB(A) |
| Indoor Noise Level (Turbo/Hi/Mi/Lo) | 49 / 47 / 45 / 31 dB(A) |
| ELECTRICAL REQUIREMENTS | |
| Condenser | Voltage: 208-230V Phase: 1 Cycle: 60 Hz Max Fuse Breaker: 30A Min Circuit Ampacity: 29.5A |
| Air Handler | Voltage: 115/208/230V Phase: 1 Cycle: 60 Hz Max Fuse Breaker: 15A Min Circuit Ampacity: 8.0/6.0A |
| REFRIGERANT & PIPING | |
| Refrigerant Type | R-454B |
| Refrigerant Volume | 105.82 oz |
| Liquid Line Size | 3/8" |
| Suction Line Size | 3/4" |
| Max Line Set Length | 164 ft. |
| FEATURES | |
| Air Handler Mount Type | Multi-Position (Upflow/Downflow/Horizontal) |
| Filter Type | Replaceable |
| Filter Size | 16" x 20" x 1" |
| Compressor Type | Rotary |
| Metering Device | EXV |
| Auxiliary Heater Included | No |
| Auxiliary Heater Available | Yes |
| Compatible Auxiliary Heater Sizes | 5 KW / 8 KW / 10 KW / 15 KW |
| CERTIFICATIONS & WARRANTY | |
| Certifications | UL Listed, CSA Listed, ETL Listed, AHRI Certified |
| Warranty | 10 Year Parts and 2 Year Labor |
