Mr Cool 60,000 BTU 5 Ton Universal Split Series Complete Heat Pump System with Air Handler
27 people are viewing this product right now
$9,000.00

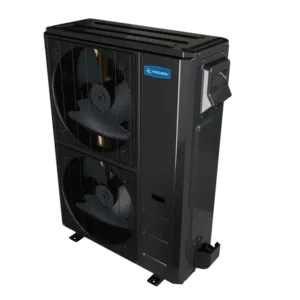

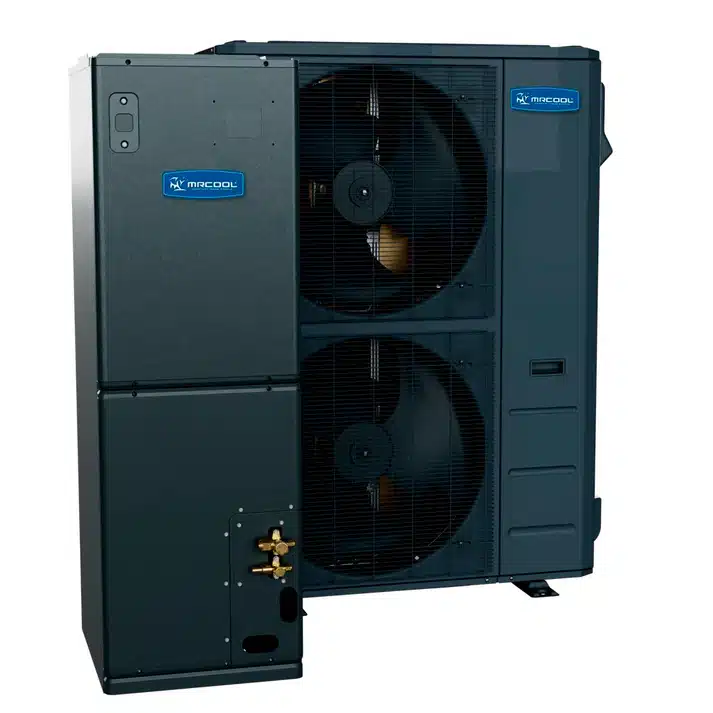

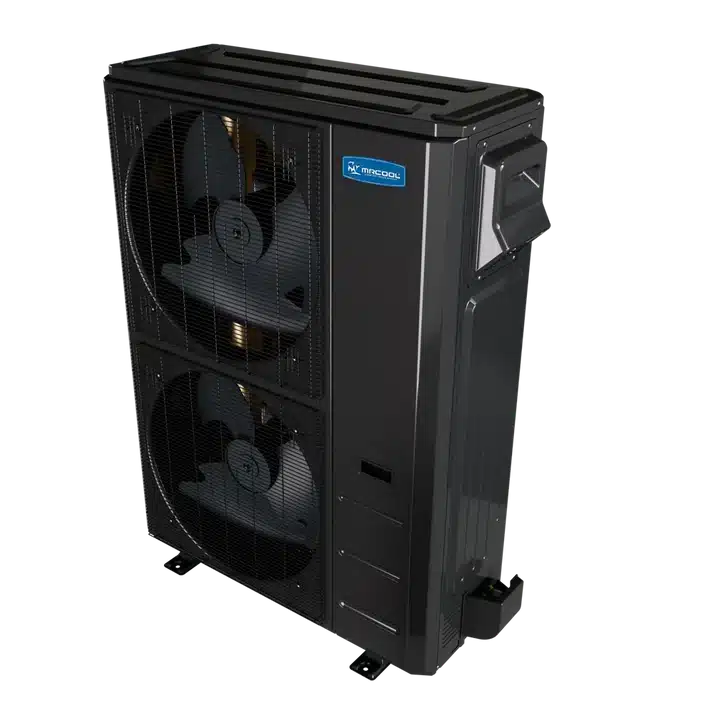

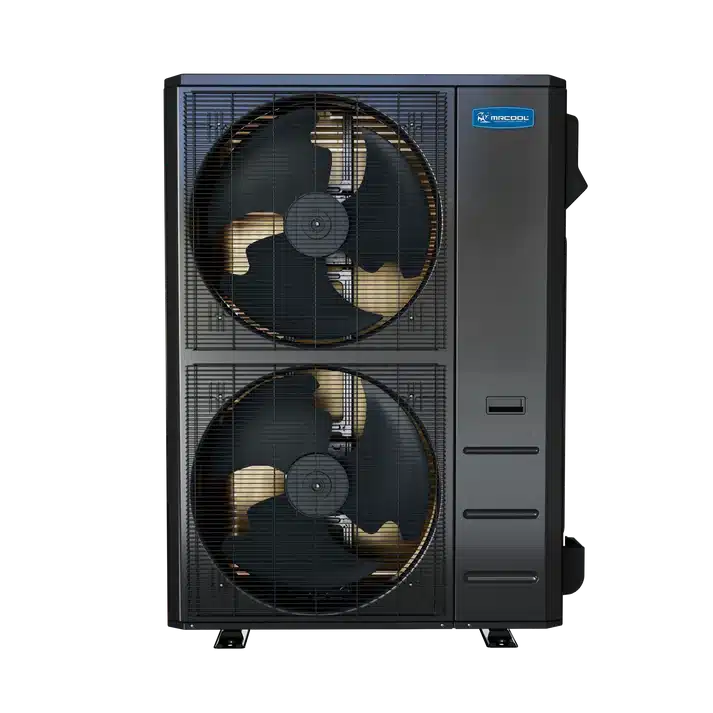

MRCOOL Universal® 60,000 BTU (5 Ton) Inverter Heat Pump System
The MRCOOL Universal® 60,000 BTU (5 Ton) system is designed for maximum capacity in large homes and high-load residential applications. Using advanced DC inverter technology and eco-friendly R-454B refrigerant, it automatically adjusts output to maintain consistent indoor comfort while helping control energy costs. With a 17.5 SEER2 efficiency rating, this system delivers powerful performance in a compact, flexible design.
The slim, multi-position air handler supports versatile installation in attics, closets, crawlspaces, and other space-restricted areas. Quiet operation, corrosion-resistant components, and compatibility with MRCOOL® NO-VAC® Quick Connect® line sets help streamline installation while ensuring long-term durability.
Key Features & Benefits
-
High Energy Efficiency – 17.5 SEER2 rating for dependable year-round comfort
-
DC Inverter Technology – Variable-speed operation for consistent temperatures and reduced noise
-
Multi-Position Installation – Supports upflow, downflow, and horizontal configurations
-
Compact Design – Ideal for tight mechanical spaces
-
Quick Connect Compatibility – Works with MRCOOL® NO-VAC® Quick Connect® line sets
-
Optional Heat Kits Available – Enhanced cold-climate performance and backup heating
-
Durable Aluminum Coil – Corrosion-resistant M-shaped coil for long-term reliability
-
Quiet Operation – Engineered for low sound levels
-
Warranty Coverage – 10-year parts and 2-year limited labor warranty
| Product Brochure | |
|---|---|
| Installation Manual | |
| Service Manual | |
| Warranty Information |
| DIMENSIONS | |
|---|---|
| Condenser Dimensions | 34.78" W x 16.34" D x 52.48" H |
| Air Handler Dimensions | 21.50" W x 21.50" D x 55.94" H |
| Condenser Weight | 242.95 lbs |
| Air Handler Weight | 188.05 lbs |
| CAPACITY & PERFORMANCE | |
| Cooling Capacity | 54,000 BTU |
| Outdoor Operating Temperature (Cooling) | -30°C to 50°C |
| SEER2 | 17.5 |
| EER2 | 12 |
| Heating Capacity | 55,000 BTU |
| Outdoor Operating Temperature (Heating) | -30°C to 24°C |
| HSPF2-4 | 9.5 |
| HSPF2-5 | 7.7 |
| Coverage Area | Up to 2,500 sq. ft. |
| Outdoor Noise Level | 64 dB(A) |
| Indoor Noise Level (Turbo/Hi/Mi/Lo) | 60 / 57 / 54 / 37 dB(A) dB(A) |
| ELECTRICAL REQUIREMENTS | |
| Condenser | Voltage: 208-230V Phase: 1 Cycle: 60 Hz Max Fuse Breaker: 40A Min Circuit Ampacity: 40A |
| Air Handler | Voltage: 115/208/230V Phase: 1 Cycle: 60 Hz Max Fuse Breaker: 15A Min Circuit Ampacity: 14.5/10A |
| REFRIGERANT & PIPING | |
| Refrigerant Type | R-454B |
| Refrigerant Volume | 183.42 oz |
| Liquid Line Size | 3/8" |
| Suction Line Size | 3/4" |
| Max Line Set Length | 246 ft. |
| FEATURES | |
| Air Handler Mount Type | Multi-Position (Upflow/Downflow/Horizontal) |
| Filter Type | Replaceable |
| Filter Size | 20" x 20" x 1" |
| Compressor Type | Rotary |
| Metering Device | EXV |
| Auxiliary Heater Included | No |
| Auxiliary Heater Available | Yes |
| Compatible Auxiliary Heater Sizes | 10 KW / 15 KW / 20 KW |
| CERTIFICATIONS & WARRANTY | |
| Certifications | UL Listed, CSA Listed, ETL Listed, AHRI Certified |
| Warranty | 10 Year Parts and 2 Year Labor |
